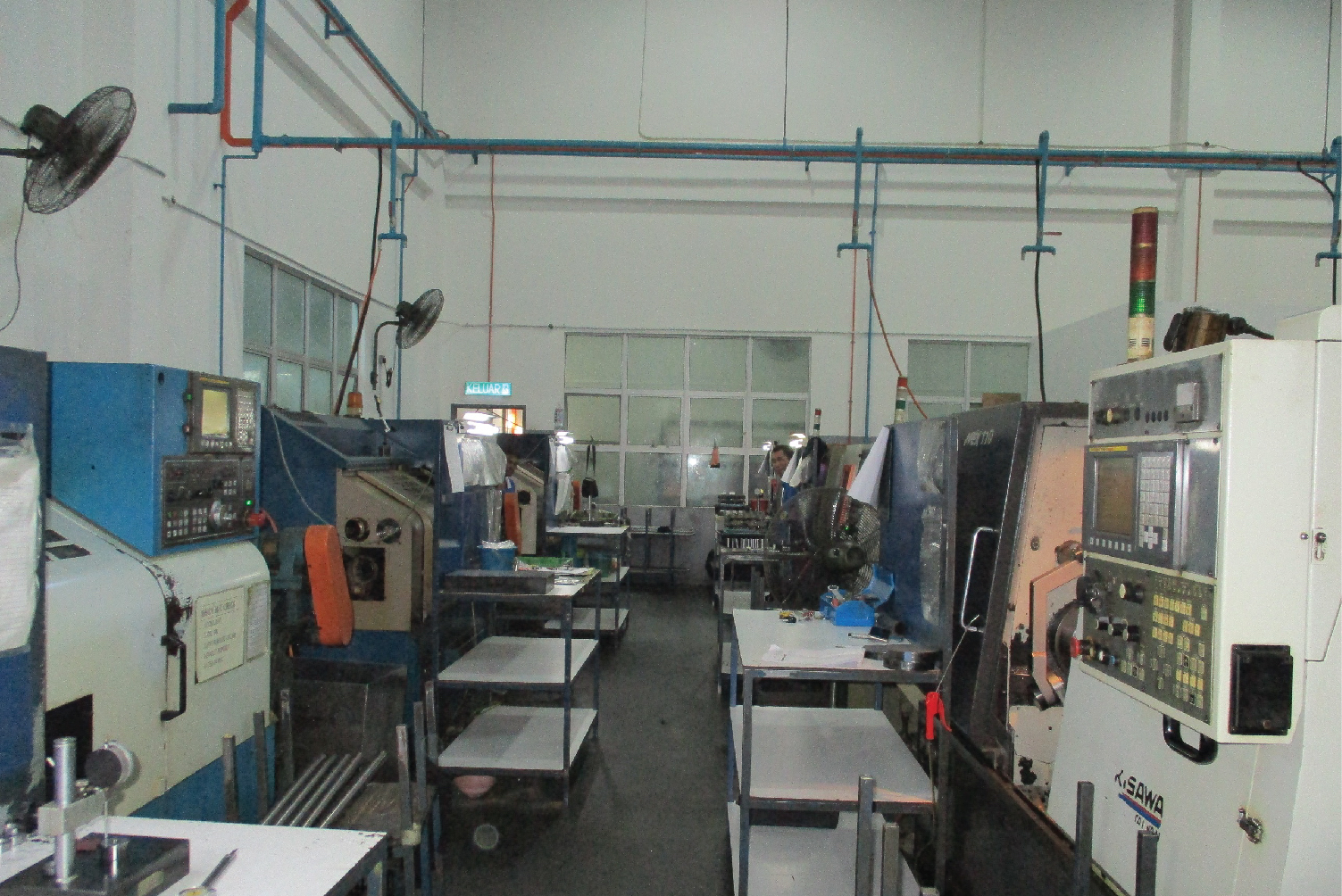

Deffort Precision Technology (M) Sdn. Bhd. is fully equipped with various types of high end CNC machines (CNC Auto lathe, CNC Milling and CNC Turning), with high accuracy and consistency.
With the machines, we are able to run complex part in one setup (turn-mill machine). Our machine capability from dia. 1.0 mm to dia. 300 mm for turning and up to 1 meter for milling.
We also have some secondary process machines to support our production such as conventional milling& lathe, tapping Machine, drilling Machine, tumbling Machine & buffing machine.
- Surface Finishing (Nickel, EN Nickel, Zinc, Clear & Black Anodizing, Polishing, chrome, etc )
- Tumbling
- Sand blasting
- Deburring
- Heat Treatment
- Mechanical Sub-assembly
Description | Brand | Model | Z-Axis | Max | Units |
---|---|---|---|---|---|
CNC Autolathe | Citizen | K- 12 (VII) | 200 mm | 12.0mm | 2 |
CNC Autolathe | Citizen | B- 12 (I) | 135 mm | 12.0mm | 4 |
CNC Autolathe | Citizen | A- 12 (II) | 135 mm | 12.0mm | 2 |
CNC Autolathe | Citizen | B- 16 (II) | 135 mm | 12.0mm | 1 |
CNC Autolathe | Citizen | L- 16 (VII) | 220 mm | 16.0mm | 3 |
CNC Autolathe | Citizen | A- 20 (VII) | 165 mm | 20.0mm | 2 |
CNC Autolathe | Citizen | A- 20 (VII) | 165 mm | 25.4mm | 1 |

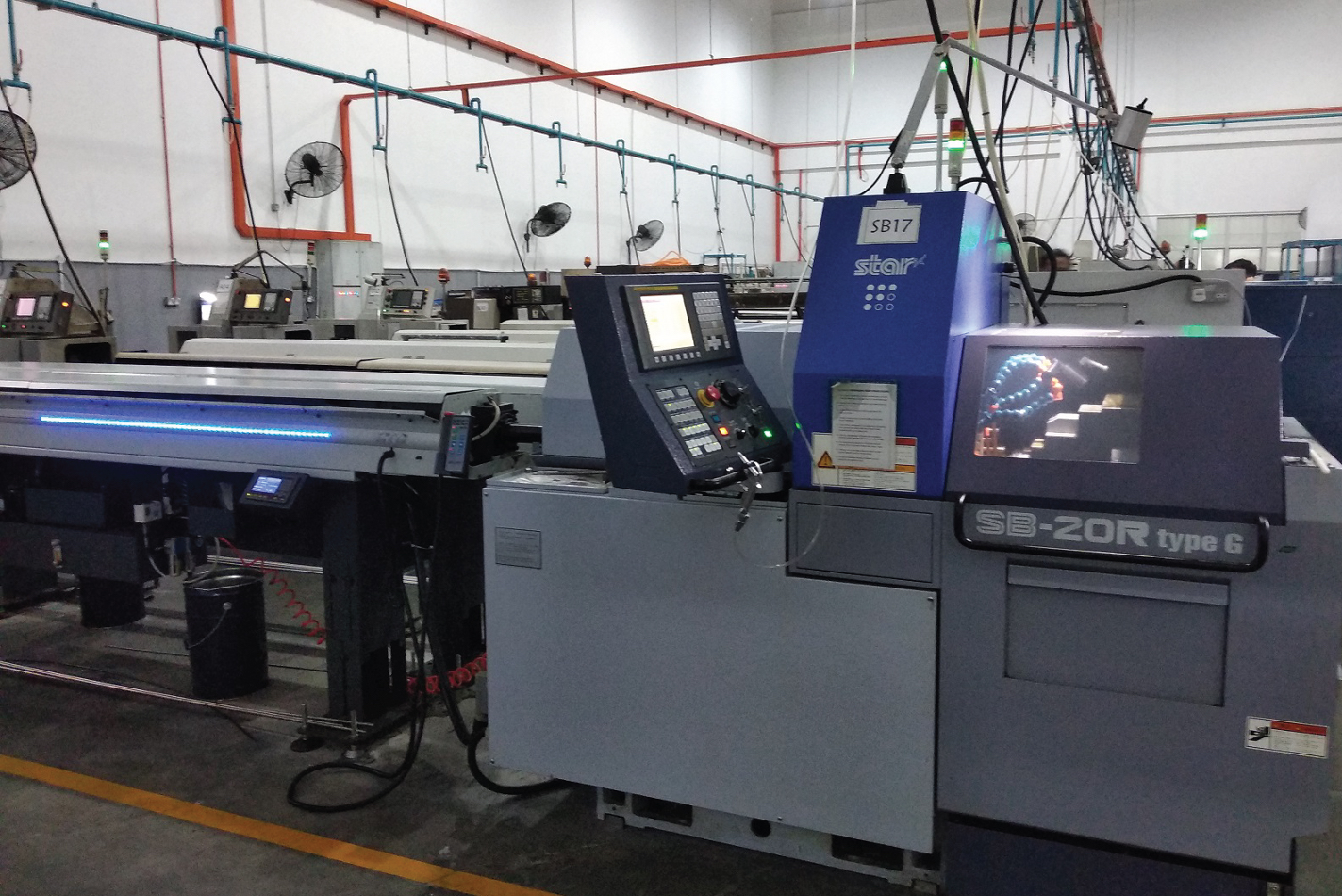

CNC Autolathe | Star | SB20R-G | 205 mm | 23.0mm | 2 |
CNC Autolathe | Chiah Chyun | NCY - 36MS | 165 mm | 36.0mm | 1 |
CNC Turning | Takisawa | NX-110 | 650 mm | 400mm | 1 |
CNC Turning | Femco | HL-25 | 600 mm | 250mm | 3 |
CNC Turning | Victor | VT-20 Plus | 600 mm | 230mm | 2 |
CNC Turning | Victor | VT-16 Plus | 600 mm | 230mm | 2 |
CNC Turning | Goodway | GA-2000 | 330 mm | 350mm | 2 |
CNC Milling | OKK | VM5III | 800 x 530 x 500 | 1 | |
CNC Milling | OKK | VM4III | 600 x 430 x 500 | 1 | |
CNC Milling | Tong Tai | TMV-510A | 510 x 360 x 435 | 1 | |
CNC Milling (4-axis) | Komatec | KT420L | 700 x 420 x 300 | 2 | |
TOTAL | 33 |
